SurfaceCAM HD™
The SurfaceCAM™ HD is purpose-built for measuring low screen anilox, gravure, coating, and embossing rolls. Whether you’re checking surface condition or looking deeper into the engraving, it brings accuracy and clarity to even the widest, most challenging rolls.
It takes up to five readings across the roll to spot wear, cleaning issues, or volume variation. That means fewer ink adjustments, quicker press setups, and less waste where it matters most.
High-resolution image sensor
Sharper. Smarter. Every Pixel Counts.
SurfaceCAM HD™ captures every detail with a precision-tuned 1024 x 768 sensor. From dot shape to engraving depth, the ultra-clear image reveals what others miss.
High-intensity LEDs enhance every scan for perfect contrast and clarity. See your anilox and plates like never before.
Engraving and Embossing
Every detail captured. Every run under control.
For engraving, SurfaceCAM™ HD captures shape, depth, wall thickness, angle, and consistency in full 3D. It detects subtle structural changes that affect transfer and coverage, giving teams the data needed for confident maintenance planning.
In embossing, it tracks wear, supports timely refurbishment, and keeps laydown consistent. SurfaceCAM™ HD goes beyond surface checks, analysing every detail to maintain tight, predictable process control.
Two touch setup
Simple to use. Trusted by teams.
Our software is designed for simplicity. Operators follow a clear workflow that delivers consistent results without needing to adjust complex settings.
With few steps and locked-in parameters, quality teams get reliable data they can act on.
1.
Auto-focus locks on
2.
Press 3D Scan to capture
3.
See detailed results in seconds
Why teams choose Troika
All Assets. Every Site.
Unified control, live status, instant reports.
Troika Management System centralises Anilox and Gravure records across locations with role-based access, saved cross-site views, and export-ready analytics.
Search, compare and report in seconds with Inventory and Media History exports to PDF, Excel or CSV, including trends, thresholds and job usage including totals in revolutions and print distance.
Right asset, first time
Filter by volume, screen, cell type, status and site. Choose correctly faster. Cut make-ready and reduce ink waste.
Headache free audits
Time-stamped histories. Clear notes and ownership. One-click handovers for teams and auditors.
Private and secure
Built in house and hosted on your infrastucture. Your data is secure and our engineers are on hand for timely support.
Tech Tool Suite
Enhance your QC suite with our ever-expanding range of advanced analysis tools for deeper insight and faster decisions. Compare profiles, measure surface texture, verify cleaning, and generate branded, ready-to-share reports in seconds.
Surface Roughness

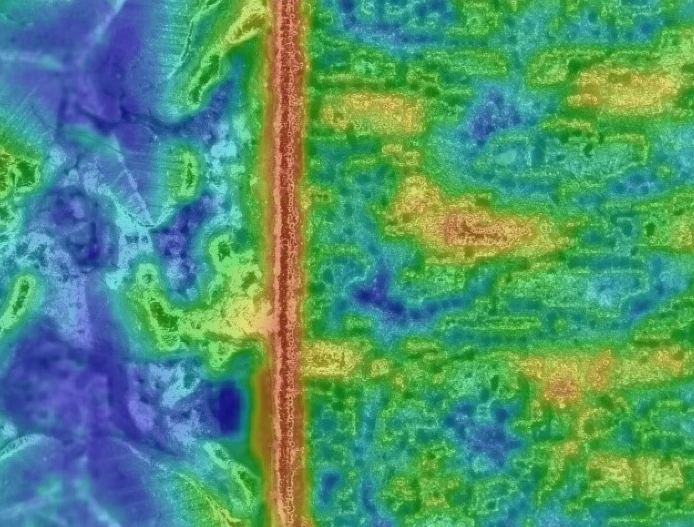

Measure Ra, Rz and peak density from high-resolution 3D scans. Verify texture, detect wear, and maintain coating consistency.
Advanced Profile Analysis
Import your scan, draw a cross-section, capture span and angle. Save key views and export a branded report.
Advanced Reporting Tool
Compare before and after scans to evidence cleaning or repair. Export branded, signed, audit-ready reports in seconds.
Explore Software
Inspect anilox rolls with precision to improve ink transfer, reduce waste, and manage inventory across sites.
Monitor gravure cylinders to reduce variation, improve print quality, and plan maintenance effectively.
Assess flexo plates for wear to improve ink transfer, reduce waste, and ensure consistent printing.
